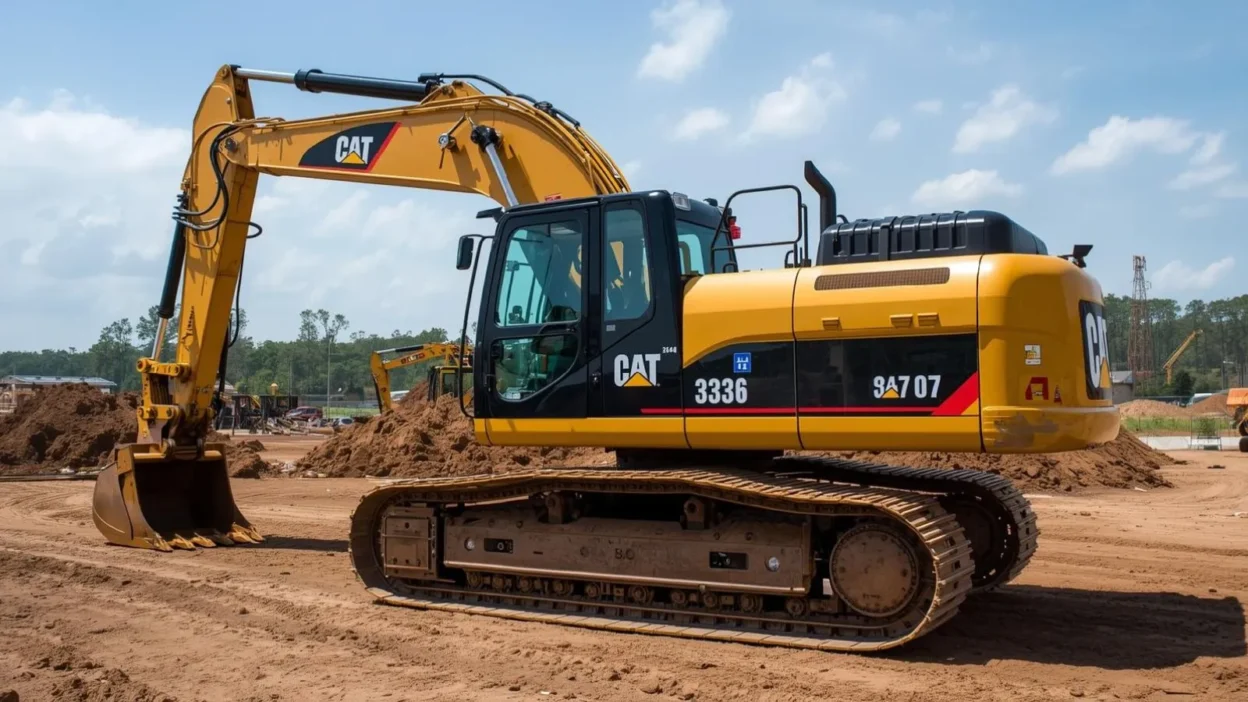

The Caterpillar 336 excavator is one of the most powerful and versatile machines in the construction and mining industries. Known for its durability, efficiency, and advanced hydraulic performance, the Cat 336 is a staple on large-scale projects around the world.
However, one of the most critical aspects often overlooked by operators and project managers is its weight. Understanding the Cat 336’s weight is essential not only for safe transport but also for operational efficiency, site planning, and regulatory compliance.
The machine’s total weight varies depending on its configuration, attachments, and optional features, making precise knowledge crucial for anyone handling this heavy equipment. In this article, we will break down the Cat 336’s weight in detail, explore how different factors affect it, and provide practical advice for transporting, operating, and managing the excavator safely on any job site.
General Specifications of Cat 336
The Caterpillar 336 is a heavy-duty hydraulic excavator designed for maximum performance in demanding environments. It comes in multiple variants, including the 336D, 336F, and 336 GC, each offering slightly different capabilities and weights. At its core, the Cat 336 features a robust engine that delivers approximately 280–300 horsepower, depending on the model, ensuring it can handle tough digging, lifting, and material-handling tasks with ease.
In terms of dimensions, the standard Cat 336 measures about 11 meters in length, 3.5 meters in width, and 3.4 meters in height, though these numbers can vary slightly depending on the cab configuration and counterweight options. Its operating weightthe weight of the machine ready for worktypically ranges from 33,000 kg to 36,000 kg, depending on attachments such as buckets, hydraulic hammers, or grapples. This weight plays a key role in the excavator’s stability and efficiency, influencing digging depth, lifting capacity, and fuel consumption.
Compared to other models, the Cat 336 is larger and heavier than the Cat 335 but slightly smaller than the Cat 340, striking a balance between power and mobility. Understanding these general specifications is crucial not only for transport planning but also for operational safety and project efficiency, ensuring the excavator performs optimally while minimizing risks on site.
Weight Breakdown of the Cat 336
Understanding the weight of the Cat 336 requires more than just looking at its base specifications. The total weight of the excavator depends on several factors, including the base machine, attachments, fuel, and optional features.
The base weight of a standard Cat 336, without any additional attachments, ranges from approximately 33,000 kg to 34,000 kg, depending on the model and counterweight configuration. This base weight includes the cab, engine, undercarriage, and standard hydraulic system, providing a solid foundation for heavy-duty operations.
Attachments, however, can significantly alter the total weight. For example, a standard digging bucket may add 1,000–1,500 kg, while larger specialized attachments like hydraulic hammers, grapples, or clamshell buckets can increase the weight by several tons. Even optional features such as heavier counterweights, reinforced tracks, or additional fuel tanks contribute to the overall load.
Fuel and fluids also play a role. A full fuel tank and hydraulic fluid system can add several hundred kilograms, affecting transport requirements and operational stability. Operators must account for these variations to ensure safe handling, particularly when transporting the machine on trailers or working on soft or uneven ground.
By understanding the breakdown of the Cat 336’s weight, project managers and operators can make informed decisions about equipment selection, transport planning, and safe operation on any construction or mining site.
Importance of Knowing Cat 336 Weight
Knowing the exact weight of a Cat 336 excavator is critical for safety, efficiency, and project planning. One of the most obvious reasons is transportation. Heavy machinery like the Cat 336 requires specialized trailers and often permits for road transport. Overestimating or underestimating the weight can lead to unsafe loading, fines, or even structural damage to transport vehicles.
Weight also directly impacts operational stability. Excavators are designed to handle specific loads safely. Exceeding these limits with heavy attachments or improper counterweights can compromise balance, increasing the risk of tipping on slopes or uneven terrain. This is especially crucial when working in tight urban sites, mines, or areas with soft ground where soil bearing capacity is limited.
Beyond safety, knowing the Cat 336’s weight affects fuel efficiency and performance. Heavier loads require more engine power, leading to increased fuel consumption and wear on components like the undercarriage and tracks. Accurate weight assessment allows operators to optimize load capacity without overstraining the machine.
Finally, understanding the machine’s weight ensures regulatory compliance. Construction sites and transport authorities often have strict limits on equipment and road loads. By carefully considering the Cat 336’s weight, operators can avoid penalties, ensure safe work conditions, and maintain the longevity of their investment.
Transport Considerations for Cat 336
Transporting a Cat 336 excavator requires careful planning due to its substantial weight and size. The base weight alone ranges from 33,000 to 34,000 kg, and with attachments or additional fuel, it can exceed 36,000 kg. This makes selecting the right transport method essential to ensure safety and compliance with regulations.
Most operators use heavy-duty lowboy trailers or specialized flatbeds designed for large construction equipment. The trailer must be rated for the total weight of the excavator, including all attachments and fluids. Overloading a trailer can cause structural damage, tire blowouts, or accidents during transit. Additionally, oversized loads often require special permits from local transport authorities, especially for highways, bridges, and urban areas.
Loading and unloading also demand precision. Using ramps or cranes, operators should ensure the machine is balanced and secured with heavy-duty chains or straps. Positioning the excavator properly on the trailer prevents weight shifting, which could destabilize the trailer during transport.
Other key considerations include route planning, accounting for bridges, narrow roads, or steep inclines, and timing, to avoid peak traffic or restricted hours for oversized loads. Proper planning not only ensures safety but also protects the excavator and transport equipment from costly damage.
By understanding these transport requirements, operators can move a Cat 336 efficiently and safely, avoiding delays and accidents on the job site or roads.
Operational Considerations for Cat 336
The weight of a Cat 336 excavator plays a major role in its day-to-day performance and operational safety. Heavier machines provide better stability, which is critical when digging deep trenches, lifting heavy materials, or operating on uneven terrain. The excavator’s base weight combined with attachments helps anchor the machine, preventing tipping during demanding tasks.
However, excessive weight from large buckets, hydraulic hammers, or added counterweights can affect fuel efficiency. A heavier load requires more engine power, increasing fuel consumption and operational costs over time. Operators should balance attachment weight with the project’s demands to optimize performance and minimize wear on the engine and undercarriage.
Weight also impacts mobility and maneuverability. On soft ground or slopes, a heavier machine can cause ground compaction or become stuck, which may slow down operations and risk damage. Proper site assessment and understanding the machine’s total weight help avoid these issues.
Additionally, heavy configurations can accelerate wear and tear on tracks, rollers, and hydraulic components. Regular inspections and maintenance schedules should consider the machine’s weight and load patterns to prevent costly repairs.
By accounting for the Cat 336’s weight during operations, operators can ensure efficient digging, safer lifting, and longer equipment life, while avoiding unnecessary fuel costs and on-site hazards.
Variations Across Cat 336 Models
The Caterpillar 336 series includes multiple models, each designed for specific operational needs, and understanding these variations is crucial for determining the correct weight and performance expectations. Common models include the Cat 336D, 336F, and 336 GC, each offering different features, engine power, and weight ranges.
The Cat 336D, an older yet reliable variant, has a base operating weight of approximately 33,000–34,000 kg. It is ideal for standard excavation tasks and provides a balance of power and efficiency. Its attachments and optional counterweights can slightly increase this weight, depending on project requirements.
The Cat 336F, a newer model with enhanced hydraulics and fuel efficiency, is slightly heavier, ranging from 34,000–36,000 kg in operating weight. This model is better suited for demanding digging, lifting, or demolition work, where additional stability and power are required.
The Cat 336 GC is a “general construction” model, optimized for cost efficiency while maintaining durability. Its operating weight is similar to the 336D but designed for less-intensive tasks, making it suitable for contractors with lighter workloads or budget considerations.
Each model’s weight impacts transport planning, site safety, and operational efficiency. Understanding these differences helps operators select the right excavator for the job, ensures compliance with transport regulations, and maintains safe, efficient operations on-site.
Calculating Total Weight of the Cat 336
Accurately calculating the total weight of a Cat 336 is essential for transport planning, operational safety, and site management. The total weight is not just the base machine it includes attachments, fuel, fluids, and optional features.
Start with the base weight, which typically ranges from 33,000 to 34,000 kg, depending on the model. Next, add the weight of attachments. Standard digging buckets may add 1,000–1,500 kg, while larger equipment like hydraulic hammers, grapples, or clamshells can contribute several tons. Optional counterweights and reinforced tracks further increase the load.
Don’t forget fuel and hydraulic fluids. A full tank can add several hundred kilograms, which may affect trailer selection and on-site stability. Adding these components together gives the approximate total operating weight of the excavator.
For example, a Cat 336F with a large digging bucket and full fuel tank might have:
- Base weight: 34,000 kg
- Bucket: 1,500 kg
- Fuel and fluids: 500 kg
Total weight: 36,000 kg
Operators should always refer to the official Caterpillar specifications or weight charts for the exact configuration. This ensures compliance with transport limits, proper site planning, and safe operation. Calculating the total weight accurately prevents accidents, protects equipment, and optimizes efficiency on every job site.
FAQs About Cat 336 Weight
1. How heavy is a Cat 336 fully loaded?
The total weight depends on the model and attachments. A fully equipped Cat 336F can weigh up to 36,000 kg when including fuel, hydraulic fluids, and heavy attachments like large buckets or grapples.
2. Does the weight affect fuel consumption?
Yes. Heavier configurations require more engine power, increasing fuel usage. Operators should consider attachment weight and total load to maintain efficiency.
3. Can I transport a Cat 336 without special permits?
Usually not. Most Cat 336 configurations exceed standard road weight limits. Heavy-duty trailers and transport permits are typically required, especially for highways, bridges, or urban areas.
4. How do attachments impact stability?
Attachments like hydraulic hammers or large buckets significantly change the machine’s center of gravity. Incorrect weight distribution can lead to tipping or instability on uneven ground.
5. How can I accurately calculate total weight?
Start with the base operating weight, then add the weight of attachments, optional counterweights, and fluids. Official Caterpillar manuals or weight charts provide exact figures for each configuration.
6. Why is knowing the Cat 336’s weight important?
Understanding the weight is essential for safe transport, operational stability, site planning, regulatory compliance, and minimizing wear on the machine.
By addressing these common questions, operators and managers can ensure safer, more efficient, and cost-effective use of the Cat 336 on any construction or mining site.
Conclusion
The Caterpillar 336 excavator is a powerhouse in construction, mining, and heavy-duty operations, but understanding its weight is just as critical as knowing its engine power or digging depth. With a base operating weight ranging from 33,000 to 34,000 kg, and a fully loaded weight potentially exceeding 36,000 kg, this machine demands careful consideration for transport, site planning, and operational safety.
Accurate knowledge of the Cat 336’s weight affects transport decisions, including trailer selection, route planning, and obtaining the necessary permits. It also ensures operational stability, preventing tipping, overloading, or ground damage while optimizing fuel efficiency and reducing wear on undercarriage components. Even small variations in attachments, counterweights, or fuel levels can make a significant difference in total weight, emphasizing the importance of careful calculation before every project.
Different models such as the 336D, 336F, and 336 have unique weight profiles, making it essential for operators to select the right machine for the job. By understanding how weight interacts with attachments, terrain, and operational demands, project managers and equipment operators can make informed decisions that improve safety, efficiency, and longevity.
Ultimately, the Cat 336’s weight is not just a number it’s a key factor in maximizing performance, minimizing risks, and ensuring every project is executed smoothly and safely. Knowledge and planning go hand in hand when working with heavy machinery.
